200DPA Caliper Brake
Eaton’s 200DPA caliper brake has a robust design, making it well suited for high torque, high energy stopping applications. Its large hydraulic pistons are capable of high clamping force. The brake automatically compensates for friction shoe wear, and mounting options allow for different disc thicknesses.
Dynamic frictional force: 5,700 lb (25,354 N)
Static frictional force: 6,300 lb (28,023 N)
Typical applications: Conveyors, flywheel brakes, mining equipment, tensioning, wind turbines, marine propulsion
225DP100 Caliper Brake
Eaton caliper model 225DP100 can be either air or hydraulically actuated. They offer a great degree of customization by varying actuating pressure, number of calipers per disc, and disc diameter. This model also self-adjusts to compensate for friction material wear.
Dynamic frictional force: 2,540 lb (11,300 N) standard linings; 190 lb (845 N) lo-co linings
Static Friction force: 3,170 lb (14,100 N) standard linings
Typical applications: Conveyors, flywheel brakes, mining equipment, railroad maintenance equipment, tensioning, marine propulsion
A Series Hydraulic Caliper Brakes
Coremo A series brakes can be fitted with special linings twice the size of standard lining, providing a larger surface for increased thermal capacity. As with many other other Coremo models, they are available in either spring- or hydraulic-applied versions.
Braking force: 1,326 to 3,594 lbf (5,900 to 15,987 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
Air Caliper Disc Brake
Kobelt air disc brakes are rugged and durable, providing solid reliable, control in either air- applied or released designs. Constructed of bronze and stainless steel, the brakes will last in the harshest conditions. Easy maintenance is a focal point of the design in order to minimize downtime.
Torque – 250 to 93,000 ft-lbs
Typical applications – Draw-works, hoists, winches, marine propulsion
B Series Pneumatic Caliper Brakes
Coremo Ocmea B series caliper brakes are available in air- or spring-applied versions. These calipers are designed to withstand the mechanical and thermal stresses of your application in order to ensure safe, satisfactory performance.
Braking force: 150 to 798 lbf (670 to 3,550 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
C Series Pneumatic Caliper Brakes
Coremo’s C series caliper brakes are air-actuated and require air pressure no greater than 6 bar. The brake is well-suited for tensioning and other applications where continuous braking is required. It can be installed in any position since it has a lever balancing and lining pad alignment system.
Braking force: 1,213 to 5,058 lbf (5,400 to 22,500 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
Caliper Discs
To work with their caliper brakes, Kobelt also supplies ventilated discs. Multiple thicknesses and diameters are available and can be supplied with rough or custom bores.
CDB Brake
PT Tech caliper disc brakes (CDB) are spring applied, electrically released, and conform to the new AISE brake standard. Compared to drum brakes, wear adjustments are less frequent, and far easier when they are required. Installation requires no modification, as the mounting hole pattern matches existing drum brakes.
Torque range: 65 to 6,000 lb-ft (48 to 4,425 Nm)
Typical application: Replaces existing drum brakes on overhead cranes
D Series Hydraulic Caliper Brakes
Coremo D series brakes are ideal for a variety of industrial applications. Hydraulic- or spring-applied options are available to best suit the requirements of your application.
Braking force: 1,258 to 3,342 lbf (5,600 to 14,868 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
D Series Pneumatic Caliper Brakes
The Coremo Ocmea D series brake can be installed in any position about your brake disc. D series brakes are available in both air-actuated or failsafe spring-applied designs. Coremo’s quality control ensures a reliable, safe product and trouble-free operation.
Braking force: 359 to 2,855 lbf (1,600 to 12,700 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
Direct Acting Caliper Disc Brake
Kobelt 5300 series disc brakes are modular in design for easy installation in a variety of applications. Several key features provide ease of maintenance, including a modular actuator design that utilizes a separable hollow rod cylinder. Brakes also have optional sintered brake pads available for high energy applications.
Braking Force – 2,450 to 90,960 lbs
Typical applications – Draw-works, hoists, winches, conveyors, marine propulsion
E Series Pneumatic Caliper Brakes
Coremo E series brakes are made from high quality ductile iron to withstand the stresses of your application. The air-actuated version’s clamping force varies based on the air pressure supplied. The spring-applied version is failsafe, as the brake caliper will clamp when air pressure is lost.
Braking force: 3,181 to 8,228 lbf (14,150 to 36,600 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
F Series Hydraulic Caliper Brakes
For applications requiring clamping force to be regulated, Coremo Ocmea F series hydraulically-actuated brakes are a great option. For applications requiring failsafe braking, such as emergency brakes or holding brakes, F series spring-applied brakes are available in two sizes to meet your braking needs.
Braking force: 1,258 to 3,342 lbf (5,600 to 14,868 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
G Series Hydraulic Caliper Brakes
The Coremo G series caliper brake is perfectly suited for a wide range of industrial applications. The calipers can be fitted with either a hydraulic- or spring-applied actuator based on the application’s requirements.
Braking force: 1,258 to 3,342 lbf (5,600 to 14,868 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
GMR Caliper Brakes
Twiflex GMR series caliper brakes are available with pneumatically, hydraulically, or spring applied thrusters. Normally one or two calipers are used per disc, ideally mounted at 3 or 9 o’clock, but more can be used on larger diameter discs.
Braking force: 1,348 to 8,093 lb (6 to 36 kN)
Typical applications: Metals processing, conveyors, grinding mills, wind turbines, amusement rides, marine propulsion
HCDB Brake
PT Tech hydraulic caliper disc brakes (HCDB) are similar in size to the drum brakes they replace, and the existing hydraulic components remain unchanged. The HCDB is wear compensating, and friction pucks are easy to change when the time comes. Unlike drum brakes, the HCDB provides the same torque per brake in a two-brake system as it does in a one-brake system.
Torque range: 425 to 900 lb-ft (576 to 1,220 Nm)
Typical application: Replaces existing hydraulic drum brakes on bridge drives
Hydraulic Caliper Disc Brake
Kobelt hydraulic disc brakes are rugged and durable, providing solid, reliable control in either hydraulic-applied or released designs. Constructed of bronze and stainless steel, the brakes will last in the harshest conditions. Easy maintenance is a focal point of the design in order to minimize downtime.
Torque – 500 to 31,000 ft-lbs
Typical applications – Draw-works, hoists, winches, marine propulsion
ID2000 Hydraulic Caliper Brake
Coremo Ocmea ID 2000 hydraulic brakes can operate in a wide range of temperatures, from -40° to 392° F (-40° to 200° C). The brake has an inductive ON/OFF sensor to indicate opening and closing. A wear indicator warns when maximum lining pad wear is reached.
Braking force: 10,566 to 44,961 lbf (47,000 to 200,000 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
ID3000 Hydraulic Caliper Brake
Coremo ID 3000 hydraulic brakes can operate in a wide range of temperatures, from -40° to 392° F (-40° to 200° C). The brake has an inductive ON/OFF sensor to indicate opening and closing. A wear indicator warns when maximum lining pad wear is reached.
Braking force: 44,961 to 60,698 lbf (200,000 to 270,000 N)
Typical applications: Steel processing, conveyors, wind turbines, amusement rides, marine propulsion
MR Caliper Brakes
Twiflex MR series brake calipers are available in a variety of actuation choices. Brake disc diameter, air pressure, and number of calipers per disc can be varied to meet your application requirements. Calipers should ideally be mounted horizontally at the 3 or 9 o’clock position about the brake disc.
Braking force: 166 to 2,427 lb (0.74 to 10.8 kN)
Typical applications: Metals processing, conveyors, grinding mills, wind turbines, amusement rides, marine propulsion
MX Caliper Brakes
Twiflex MX series brake calipers are available with pneumatic, manual, or spring applied thrusters. Failsafe spring applied options are available in pneumatic, hydraulic, or electrically released models. MX calipers feature a patented link mechanism which ensures uniform pad wear.
Braking force: 166 to 3,214 lb (0.74 to 14.3 kN)
Typical applications: Metals processing, conveyors, grinding mills, wind turbines, amusement rides, marine propulsion
T40 Caliper Brakes
The Twiflex T40 brake is a split caliper, hydraulically applied design. The modules are mounted each side of a central mounting plate of the same thickness as the brake disc.
Braking force: up to 10,116 lb (45 kN)
Typical applications: Metals processing, conveyors, grinding mills, wind turbines, amusement rides, marine propulsion

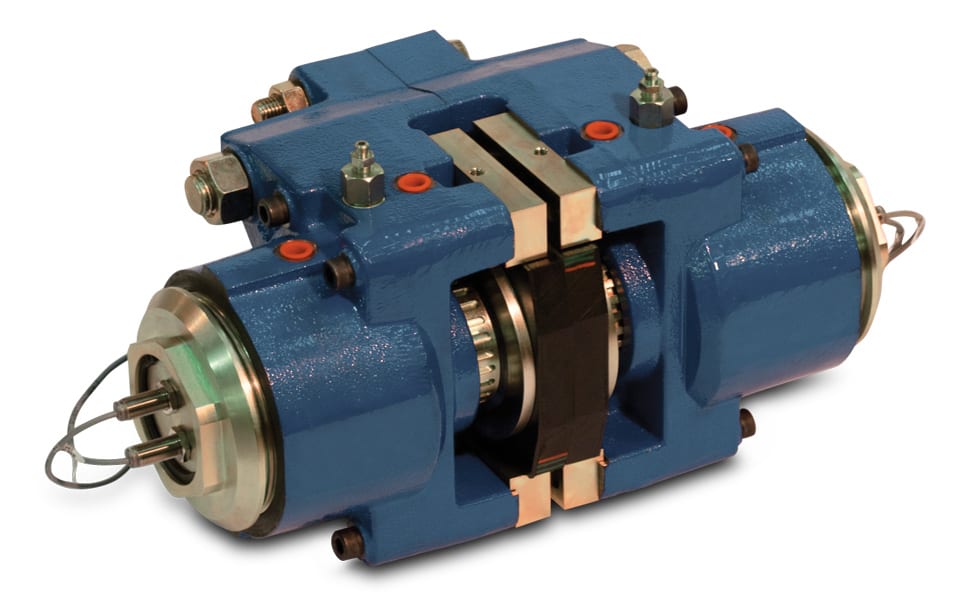

VCS Caliper Brakes
The Twiflex VCS is a modular brake caliper which is spring applied and hydraulically released. The two halves (modules) are mounted each side of a central mounting plate of the same thickness as the brake disc. The VCS-FL is a single module option, for use where space is limited or to accomodate axial disc float.
Braking force: 5,620 to 13,938 lb (25 to 62 kN)
Typical applications: Metals processing, conveyors, grinding mills, wind turbines, amusement rides, marine propulsion
VKSD Caliper Brakes
Twiflex VKSD modular brake calipers are spring applied, hydraulically released, and deliver greater braking force than the VCS. The two halves (modules) are mounted each side of a central mounting plate which is thicker than the brake disc. The VKSD-FL is a single module option, for use where space is limited or to accomodate axial disc float.
Braking force: 6,295 to 26,752 lb (28 to 119 kN)
Typical applications: Metals processing, conveyors, grinding mills, wind turbines, amusement rides, marine propulsion
